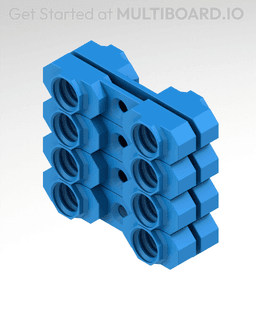

Use “Bolt-Lock Mounts” if you want your entire board or segments of your board to be easily removable, or if you're using Multibin Plates. This mounting method creates a 6.25 mm offset from the surface. This is a “Quad” Mount that holds four Tiles together.

(The Quad Mount has two parts that connect together - flex the back part slightly to join them)

To set it up:

• Use Multiboard Snaps for unconnected removable tiles. Or use Raised Snap Connectors for a connected removable board.
• Secure the Bolt-Lock Mounts to a surface using screws. To align the mounts properly, first attach the mounts to the tiles using temporary passthrough bolts.
• Secure your board to the mounts using Locking Bolts.

Printing Guidelines:

Video tutorial on how to print stacks: https://www.youtube.com/watch?v=xs2urfM0MRM

This stack print has been designed specifically for 0.2 mm layer heights. They have a 0.2 mm gap between each print. Make sure that all top surfaces get ironed. As a bonus, set the seam alignment to random for maximum strength.

Apart form that, use the default recommended settings: 3 wall perimeters in wall thickness. 15% infill. No supports are needed. The printing orientation is as provided in the file.

—

This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io
